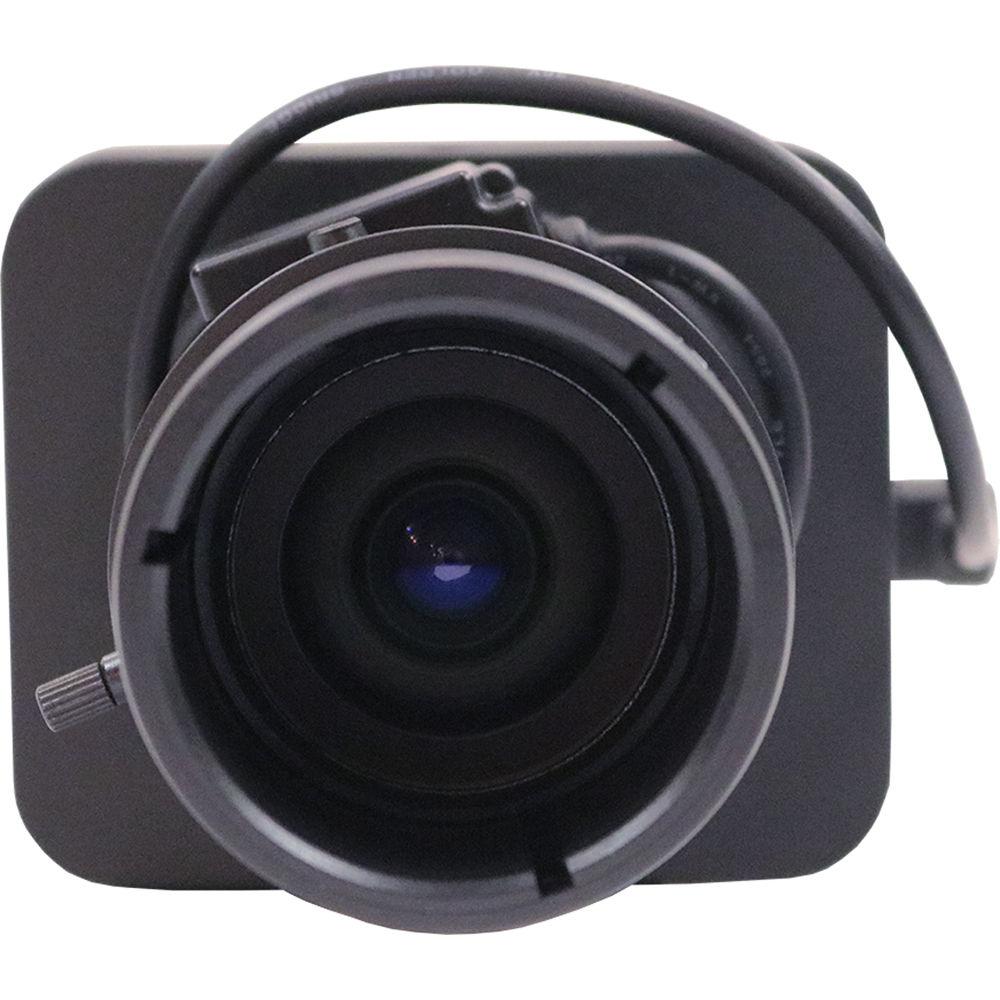

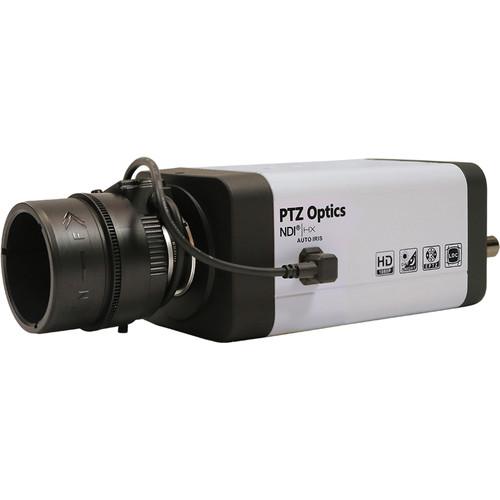

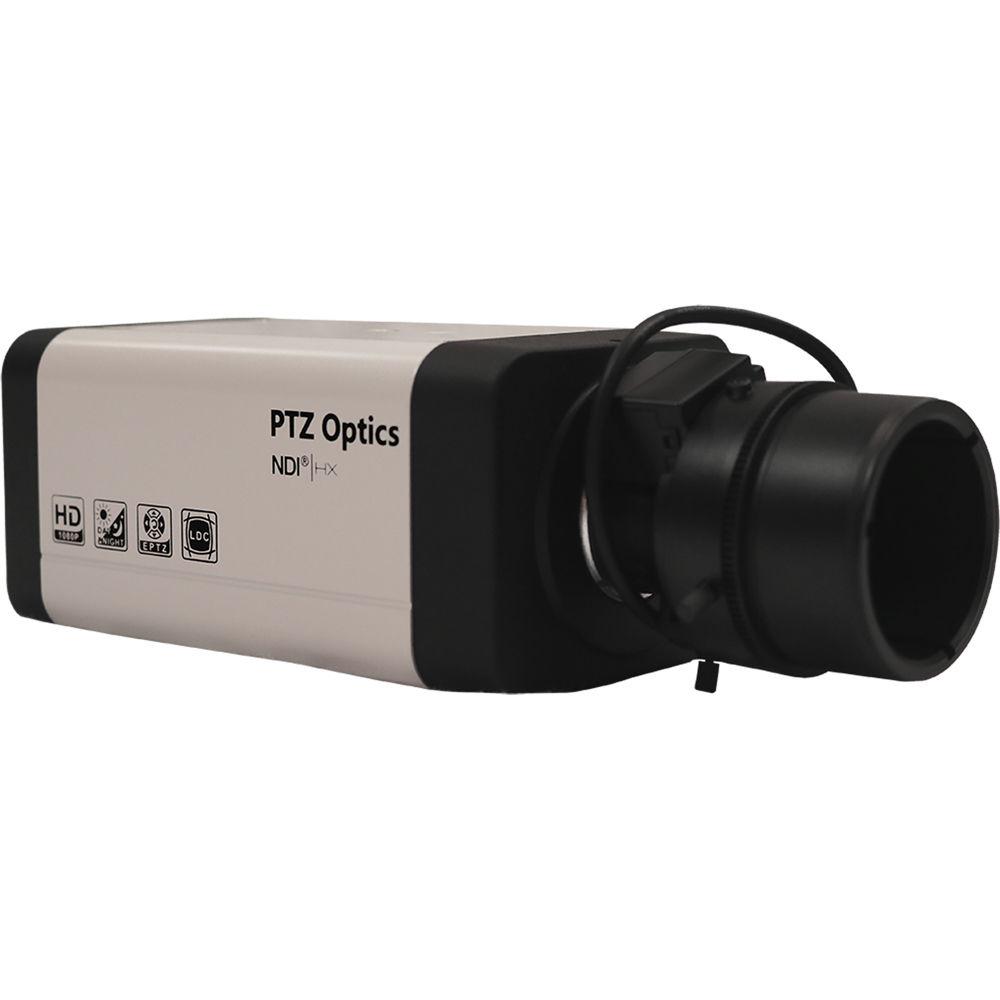

User Manual for PTZOptics VL NDI|HX ZCam HD IP Network Camera with 4.4-88.5mm Lens Click to enlarge the picture
Contents of the user manual for the PTZOptics VL NDI|HX ZCam HD IP
- Product category: Industrial & Multi-Purpose Cameras PTZOptics
- Brand: PTZOptics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PTZOptics Industrial & Multi-Purpose Cameras
 |
User manual for the PTZOptics VL NDI|HX ZCam HD IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PTZOptics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PTZOptics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PTZOptics product will considerably shorten its lifespan!
|
Product description - PTZOptics NewTek" NDI" Compatible Cameras
For streaming broadcast-quality video at a concert, hospital, conference, or house of worship, the VL NDI|HX ZCam HD IP Network Camera from PTZOptics easily covers any event or location with a 4.4-88.5mm C/CS mount lens, a 4x zoom, and a video resolution up to 1080p60. The camera can fit into any NDI-compatible setup, features a 1/2.7" CMOS sensor, and captures a 2.07 MP image with 3G-SDI and NDI|HX high definition output.
The camera connections include a 3G-SDI BNC connector, single-channel audio input and output, a RS-485 serial connector for remote communication, and an Ethernet port for IP streaming which features 802.3af PoE (Power over Ethernet). Broadcasting up to two streams simultaneously is supported; an HD stream with a maximum 1080p resolution, and a second SD stream with a maximum 720p resolution. A wired serial remote or web-based application can be used to connect and control, and the camera also features a joystick for local control of all the camera settings and operations.
With the optical 4x zoom lens, the horizontal field of view ranges from 28-122° with a maximum aperture of f1.8, which provides wide coverage and advanced low-light performance. Supported IP streaming protocols include RTSP and RTMP, AAC audio, H.265, H.264, and MJPEG compression. For greater image detail and quality in low light, the sensor's DRC (dynamic range control) assists in keeping your image sharp and balanced, and the high SNR (signal-to-noise ratio) reduces noise at ≥ 55 dB, particularly in low-light situations.
A 12 VDC power adapter, RS-232 cable, and IR remote are included in the package. - Panasonic 1/2.7 inch 2.07MP HD CMOS sensor
- 4.4-88.5mm C/CS mount lens with 4x zoom and 28-122° field of view
- Maximum of 1080p60 streaming video; two simultaneous streams possible with second stream maximum of 720p
- IP streaming via RTSP and RTMP with H.265, H.264, and MJPEG compression
- 3G-SDI, ND|HX, Ethernet IP network outputs; 802.3af PoE (Power over Ethernet) supported
- High SNR (signal-to-noise ratio) of ≥ 55 dB and wide DNR (dynamic range) to keep noise low and quality and detail high
- Joystick or remote control over serial connection
- Stream and configure camera over IP with web application
- AC adapter, RS-232 cable, and IR remote controller included
UPC: 737993161295 In the Box PTZOptics VL NDI|HX ZCam HD IP Network Camera with 4.4-88.5mm Lens 4x Zoom Lens AC Power Adapter Power Cord RS-232 Cable IR Remote Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics VL NDI|HX ZCam HD IP Network Camera with 4.4-88.5mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPTZOptics PTVL-NDI-ZCAM Specs | Sensor | Panasonic 1/2.7" CMOS, 2.07 MP | | Lens Mount | C/CS type | | Power | Input Voltage: 12 VDC, JEITA-type power adapter
Power over Ethernet (PoE): 802.3af PoE
Current: 1.0 A max
Power Consumption: 12 W max | | Network Interface | Ethernet: 10/100/1000 Mb/s adaptive | | Video Output | Interface: 1 x HD-SDI: BNC, 800 V p-p, 75 Ohms, SMPTE 424M standard
Protocols: 3G-SDI, NDI|HX, IP streaming | | Frame Rates Supported | HD-SDI:
1080p: 60/50/30/25
1080i: 60/50/30/25
720p: 60/50/30/25
SD:
NTSC, PAL | | Video Codec Support | H.265, H.264, MJPEG dual stream output | | Video Streaming | Protocols: NDI|HX, TCP/IP, HTTP, RTSP, RTMP, multicast, DHCP, ONVIF
Bit Rate: 128 to 8192 kb/s, fixed or variable
Frame Rate: 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps | | Audio Input / Output | In: 1 x 3.5 mm
Out: 1 x 3.5 mm | | Audio Encoding | Standard: AAC
Bit Rate: 96, 128, 256 kb/s | | Communication Port | Port Type: RS-485
Protocol: VISCA, Pelco-D, Pelco-P
Max Distance: 0.75 mile / 1200 m | | Supported Serial Port Baud Rates | 2400/4800/9600 bits | | Focal Length | 4.42 to 88.5mm | | Aperture Range | f1.8 to f2.8 | | Optical Zoom | 4x | | Shutter | 1/30 sec, ~1/10000 sec | | Minimum Lux | 0.5 at f1.8, AGC ON | | White Balance | Auto, indoor, outdoor, one push, manual, VAR | | Horizontal Field of View (degree) | 28° to 122° | | Vertical Field of View (degree) | 16° to 91° | | Signal to Noise Ratio (SNR) | ±55 dB | | Mounting Thread | 2 x 1/4"-20 female (top and bottom) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 2.4 x 5.7 x 3" / 6.1 x 14.5 x 7.6 cm | | Weight | 1.4 lb / 630 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.4 x 4.9 x 4.5" |
